Airedale TurboChill FreeCool
Winner of ’Energy Saving Product of the Year’ at the CIBSE Building Performance Awards 2015, the TurboChill is the first BSI approved range of high performance turbo chillers using the low GWP refrigerant R1234ze available from a British manufacturer.
Key features:
- TurboChill range available with R134a refrigerant and the new low GWP refrigerant R1234ze
- R134a Single circuit 200 - 945kW (TCC), 200 – 1000kW (TCF) / Dual circuit 200 - 1775kW (TCC), 200 – 1830kW (TCF)
- R1234ze Single circuit 200 – 640kW (TCC), 200 – 735kW (TCF) / Dual circuit 200 – 1260kW (TCC), 200 – 1430kW (TCF)
- 236 models, 150 of which are dual circuit models
- Free-cooling at up to 116% of nominal capacity for reduced operating costs and carbon footprint (TCF)
- Centrifugal compressor technology offers near silent compressor operation
- TT300, TT350 and TG310 fully modulating compressors
- Oil-free operation enhances heat exchanger efficiency
- Modular ‘V’ frame coil arrangement offers increased heat exchange area and improved air flow for increased efficiency
- Low sound ranges: Regular Quiet (R) and Extra Quiet (X)
- Polymer-coated microchannel coils for reduced life cycle costs and reduced footprint
- Up to two compressors across a single circuit for reduced energy consumption at part load
Main benefits:
- Centrifugal compressor - 25-100% variable speed control for tighter setpoint management and substantial energy savings at part load
- Flooded evaporator - enhanced optimum heat exchange and system efficiency give 15% energy savings in compressor operation particularly at part load

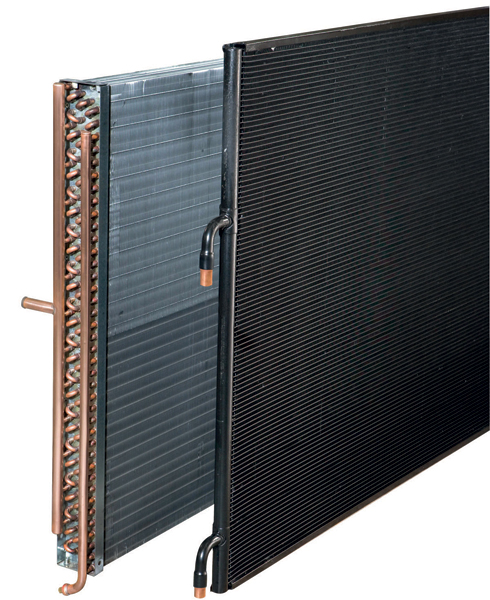

- Microchannel heat exchanger - high surface area provides increased heat transfer and lower airside drop giving lower fan powers; the slim, light profile reduces weight / space claim
- Modular V-frame - vastly improves heat exchange, resulting in better performance and control particularly at part load; also facilitates easier maintenance
- In-built low current start (2A)
- Oil-free operation enhances heat exchanger efficiency
- Up to two Turbocor compressors across a single circuit for reduced energy consumption at part load
- Intelligent compressor management by network-capable AireTronix controls
- Large surface area condenser coils with latest fan technology
- EC fans and interactive head pressure setpoint management give increased performance for reduced power input
- Chiller Sequence Manager (option)
- Automatic rescheduling of chilled water setpoint
- Flooded evaporator improves part load efficiencies
- Economiser circuit provides increased cooling and enhances EER in full and part load operation
*ESEER (European Seasonal Energy Efficiency Ratio) is based on the part load efficiency of TurboChill over the course of a year and is a better indicator of real energy draw and running costs.
