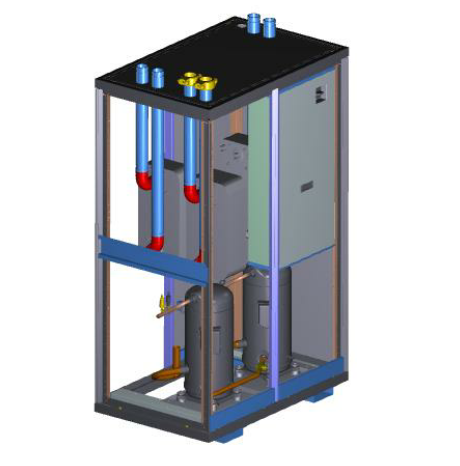

RC Manta EVO

Packaged water cooled liquid chillers for indoor installation, equipped with fully hermetic scroll compressors, plate type evaporator and condenser.
Cooling Capacity: 21 - 464 kW

Key features:

• Water cooled liquid chiller.
• 24 models, 2 versions available, for a wide selection opportunity.
• Average step of 30kW.
• EER up to 4,36.
• ESEER up to 6,87.
• Scroll compressors.
• R410A Refrigerant charge.
• Plate type heat exchangers.
• Suitable for indoor installation.

Main benefits:

• New frame, more compact, suitable to walks in through a standard door;
• Hydraulic connections on the top side of the machine;
• Reduction of service spare around the machine;
• New control software, developed by RC Brand, with an advanced control
  logic;
• Increased cooling density, up to 220kW per m2;
• Total front access for the routine maintenance;
• Up to two three compressors for each refrigerant circuit to reach a high
  efficiency.
• Units with single or double refrigerant circuits.
• High ESEER.
• Low sound level guaranteed by the cabinet structure;
• Availability of plant side and source side pumping groups.
• Availability of total or partial heat recovery system.
• Easily of maintenance.
• Eurovent Certification.

Working limits in cooling mode:
Evaporator chilled water outlet temperature: -12÷20°C
Condenser outlet water temperature: 20÷60°C
