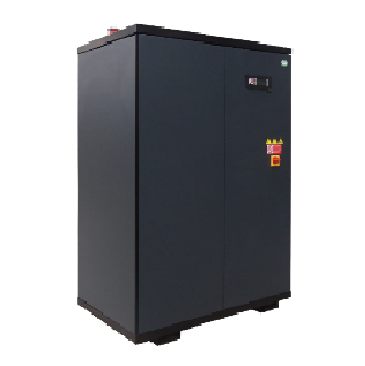

RC Manta EVO A HP
Split system heat pump liquid chillers for indoor installation, equipped with fully hermetic scroll compressors and plate type heat exchanger.
Cooling Capacity: 20 - 400 kW
Heating Capacity: 20 - 450 kW
Key features:
- Split system heat pump liquid chiller.
- 22 models, 2 versions available, for a wide selection opportunity.
- Average step of 20kW.
- EER up to 3,02.
- COP up to 3,18.
- Scroll compressors.
- R410A Refrigerant charge.
- Plate type heat exchangers.
- Suitable for indoor installation.
- Split system.
Main benefits:
- New frame, more compact, suitable to walks in through a standard door;
- Hydraulic connections on the top side of the machine;
- Reduction of service spare around the machine;
- New control software, developed by RC Group, with an advanced control logic;
- Increased cooling density, up to 180kW per m2;
- Increased heating density, up to 205kW per m2;
- Total front access for the routine maintenance;
- Up to two compressors for each refrigerant circuit to reach a high efficiency.
- Units with single or double refrigerant circuits.
- Low sound level guaranteed by the cabinet structure;
- Availability of plant side pumping groups.
- Availability of partial heat recovery system.
- Easily of maintenance.
- Up to A+ Class. ErP 2015.
WORKING LIMITS IN COOLING MODE
Evaporator chilled water outlet temperature: -12 - 20°C
Ambient temperature: -10 - 45°C
WORKING LIMITS IN HEATING MODE
Condenser hot water outlet temperature: 30 - 60°C
Ambient temperature: -12 - 30°C
